EPS

EPS

Cost-effective lightweight core

Expanded polystyrene core offering cost-effective lightweight insulation for standard cold storage and commercial applications.

Technical Profile

Key properties

Fire RatingClass B-s1, d0
Thermal Performance0.035-0.040 W/mK
Density15-25 kg/m³
Thickness Range25mm - 200mm

The story

Dismissed by architects, trusted by engineers. The case for taking EPS seriously.

EPS has an image problem. Because it is inexpensive and widely available, it is often assumed to be low-quality. The reality is more nuanced. Expanded polystyrene has been used in insulated building construction for over 50 years, and its real-world durability record in temperate and dry climates is exceptional. It does not absorb moisture under normal conditions, it does not creep under sustained load, and it maintains its rated thermal performance over the life of the building. For projects in commercial and modular construction where budgets are fixed and performance requirements are moderate, EPS is not a compromise — it is the economically rational choice. Royal Havilah specifies EPS at a density range of 15–25 kg/m³ because this is where the optimal balance between thermal performance and compressive strength lies. Going lower reduces cost further but creates long-term settlement risk. We do not offer that grade.

1

50-year track record

Longer real-world performance history than any foam alternative

2

Moisture-stable

Closed-bead structure resists liquid water absorption in normal service conditions

3

Cost-optimised

Lowest material cost per unit of thermal resistance in the Royal Havilah range

Gallery

EPS in detail

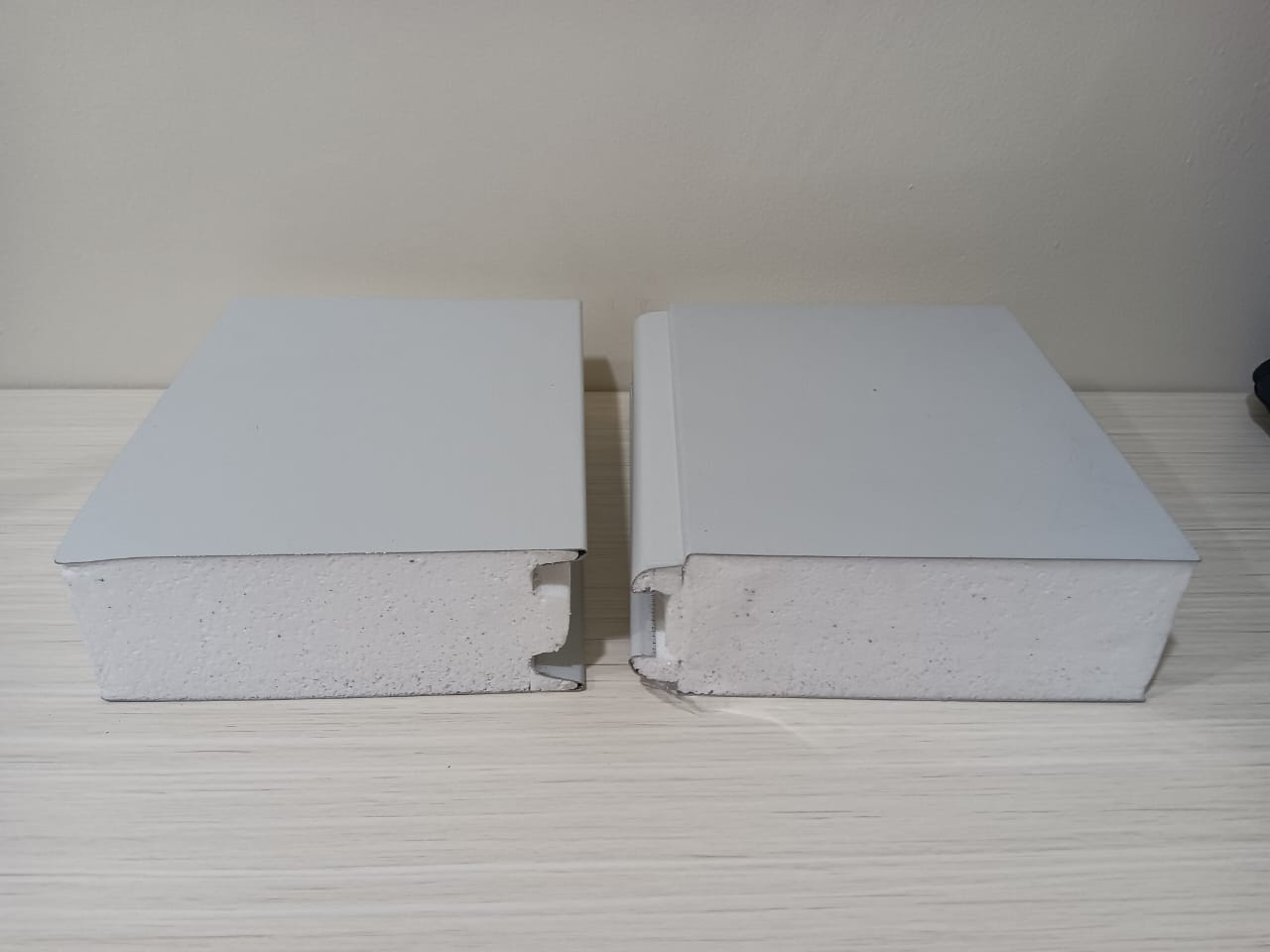

EPS panel samples — tongue-and-groove interlocking joint

Product Range

Available in

Specify EPS for your project

Our engineers will help you select the right core, thickness, and facing for your performance requirements.
